Home>>SPEAKER CABINET>>Moulded Speaker Cabinet

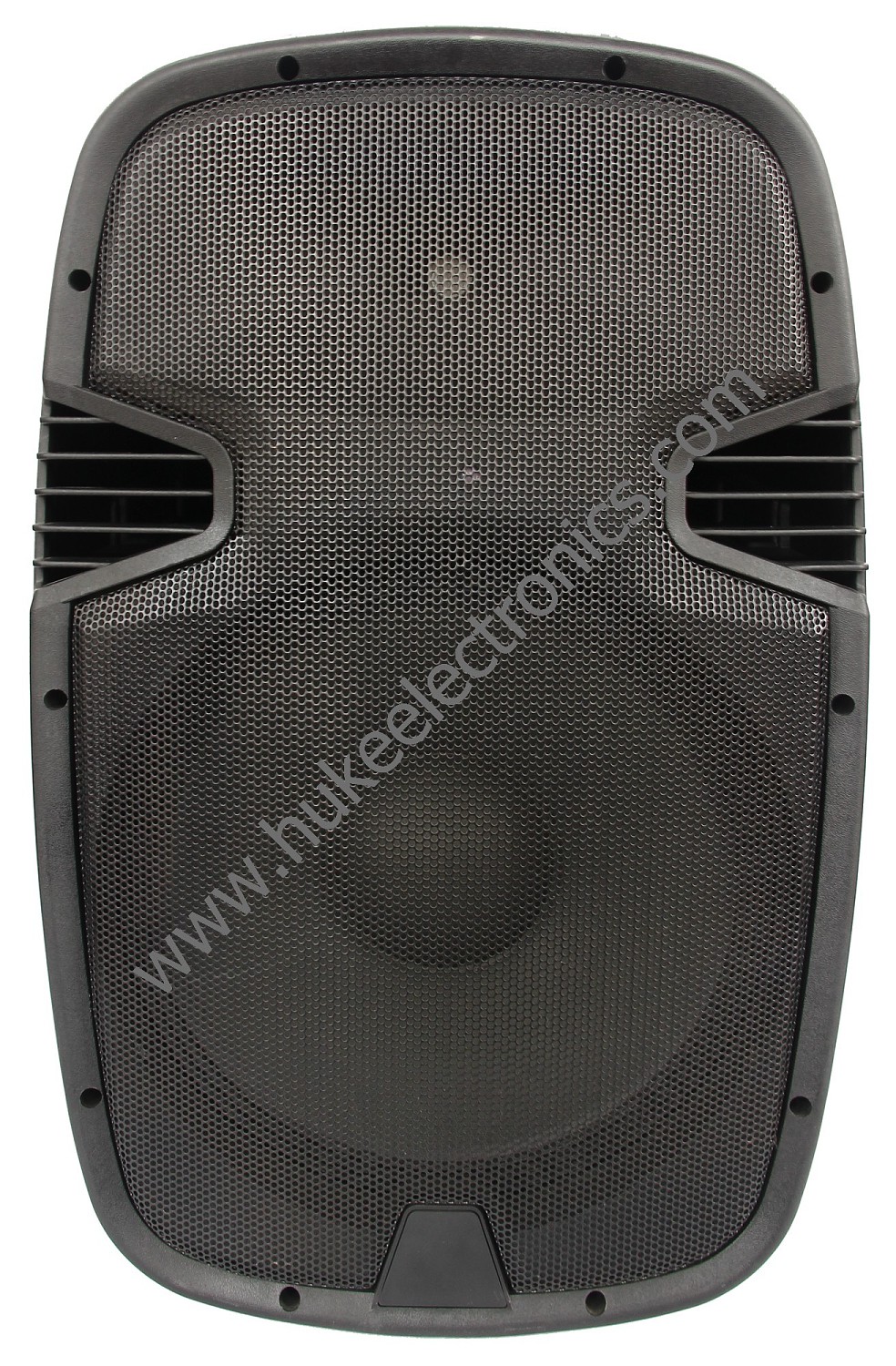

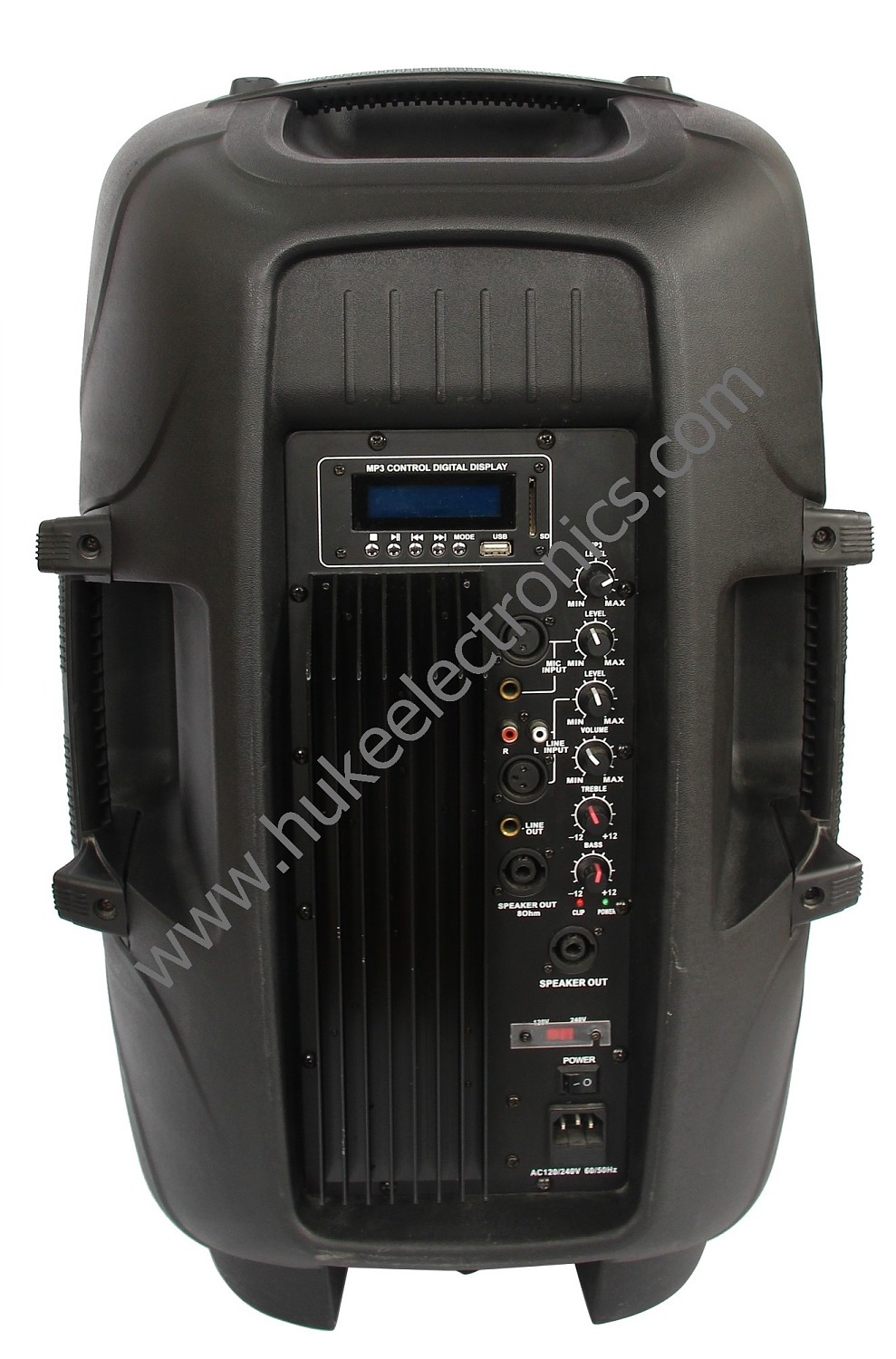

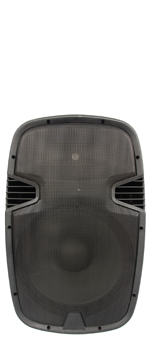

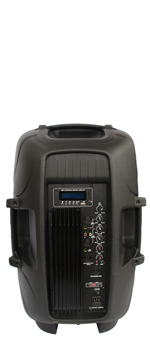

PJ Serie
Features :
PJ serie is high qualified two-way molded speaker system based on a heavy duty woofer and a titanium compression driver
Handlers at top and side with speaker mounting pole socket
Ideal solution for DJ ,clubs and other public speaking applications
| Specifications: | ||||
| Model: | PJ-8 | PJ-10 | PJ-12 | |
| System type: | 8" 2 Way passive | 10" 2 Way passive | 12" 2 Way passive | |
| Power handling: | 120W,240W PEAK | 150W,300W PEAK | 200W,400W PEAK | |
| LF woofer: | 8" with 1.5" kapton voice coil,30 OZ magnet | 10" with 2" kapton voice coil,50 OZ magnet | 12" with 2.5" kapton voice coil,50 OZ magnet | |
| HF driver: | 1" Titanium | 1.35" Titanium | 1.35" Titanium | |
| Frequency response: | 65Hz-18KHz | 55Hz-18KHz | 50Hz-18KHz | |
| Impedance: | 8 Ohm | 8 Ohm | 8 Ohm | |
| Sensitivity: | 93dB | 95dB | 95dB | |
| Connecors: | 2*Speakon | 2*Speakon | 2*Speakon | |
| Dimension(W*L*H): | 29*24*44 CM | 38*28*54 CM | 42*34*63 CM | |
| Weight: | 8 KGS | 10 KGS | 13 KGS | |
| Model: | PJ-8AU | PJ-10AU | PJ-12AU | |
| System type: | 8" 2 Way active | 10" 2 Way active | 12" 2 Way active | |
| Power handling: | 80W,160W PEAK | 120W,240W PEAK | 150W,300W PEAK | |
| LF woofer: | 8" with 1.5" kapton voice coil,30 OZ magnet | 10" with 2" kapton voice coil,50 OZ magnet | 12" with 2.5" kapton voice coil,50 OZ magnet | |
| HF driver: | 1" Titanium | 1.35" Titanium | 1.35" Titanium | |
| Frequency response: | 65Hz-18KHz | 55Hz-18KHz | 50Hz-18KHz | |
| Impedance: | 4 Ohm | 4 Ohm | 4 Ohm | |
| Sensitivity: | 93dB | 95dB | 95dB | |
| Amplifier module: | 80W RMS ,Analog | 120W RMS ,Analog | 150W RMS ,Analog | |
| Functions: | MP3 player, SD card input , FM radio , remote controller | MP3 player, SD card input, FM radio , remote controller | MP3 player, SD card input , FM radio , remote controller | |
| Connecors: | Dual RCA line & 1/4 JACK MIC INPUT&Speakon output |
Dual RCA line & XLR MIC input,XLR & 1/4 JACK Line output,Speakon output |
Dual RCA line & XLR MIC input,XLR & 1/4 JACK Line output,Speakon output | |
| Dimension(W*L*H): | 29*24*44 CM | 38*28*54 CM | 42*34*63 CM | |
| Weight: | 9 KGS | 11.5 KGS | 15 KGS |
| Model: | PJ-15 | PJ-15AU | |
| System type: | 15" 2 Way passive | 15" 2 Way active | |
| Power handling: | 250W,500W PEAK | 180W,360W PEAK | |
| LF woofer: | 15" with 3" kapton voice coil,60 OZ magnet | 15" with 3" kapton voice coil,60 OZ magnet | |
| HF driver: | 1.75" Titanium | 1.75" Titanium | |
| Frequency response: | 40Hz-18KHz | 40Hz-18KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 98dB | 98dB | |
| Amplifier module: | 180W RMS ,Analog | ||
| Functions: | MP3 player,SD card input, FM radio,remote controller | ||
| Connecors: | 2*Speakon | Dual RCA line & XLR MIC input, XLR & 1/4 JACK Line output, Speakon output | |
| Dimension(W*L*H): | 48.5*40*74 CM | 48.5*40*74 CM | |
| Weight: | 18 KGS | 20 KGS |
