Home>>AUDIO MIXER>>Unpowered Mixing Console

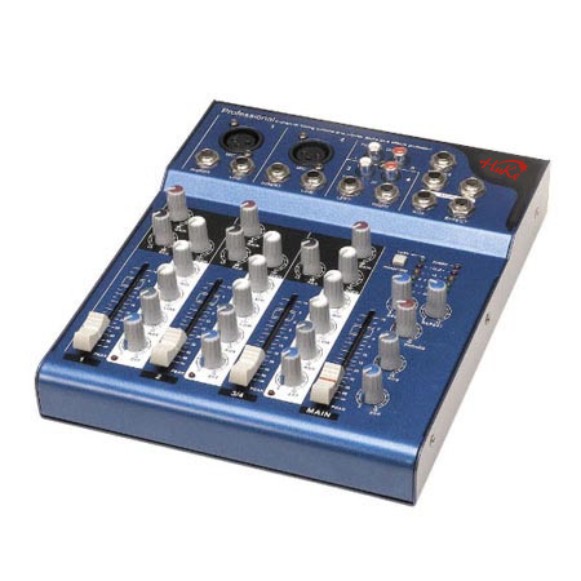

MY4/MY7
Unpowered Mixing Console
Unpowered Mixing Console
+48V phantom power supplier
One group AUX output and return.
High precision 60mm long life fader.
Build in digital effects.
Recording and monitoring output.
Breakpoint functionality for each channel
Super thin design.
Technical Specification:
Channel MIC/LINE:4CH/7CH
Total Harmonic Distortion: ≤0.01%
Frequency Response: 10Hz～25KHz
Max Outputs: 4V Max
S/N Ratio: ≥98dB
Input Sensitivity: Mic-60dB
Line-45dB
Input EQ: HI±15dB/12KHz
MID±15dB/2.5KHz
LOW±15dB/80Hz
PHONTOM POWER: +48V
Power Consumption:25W
