Home>>SPEAKER CABINET>>Moulded Speaker Cabinet

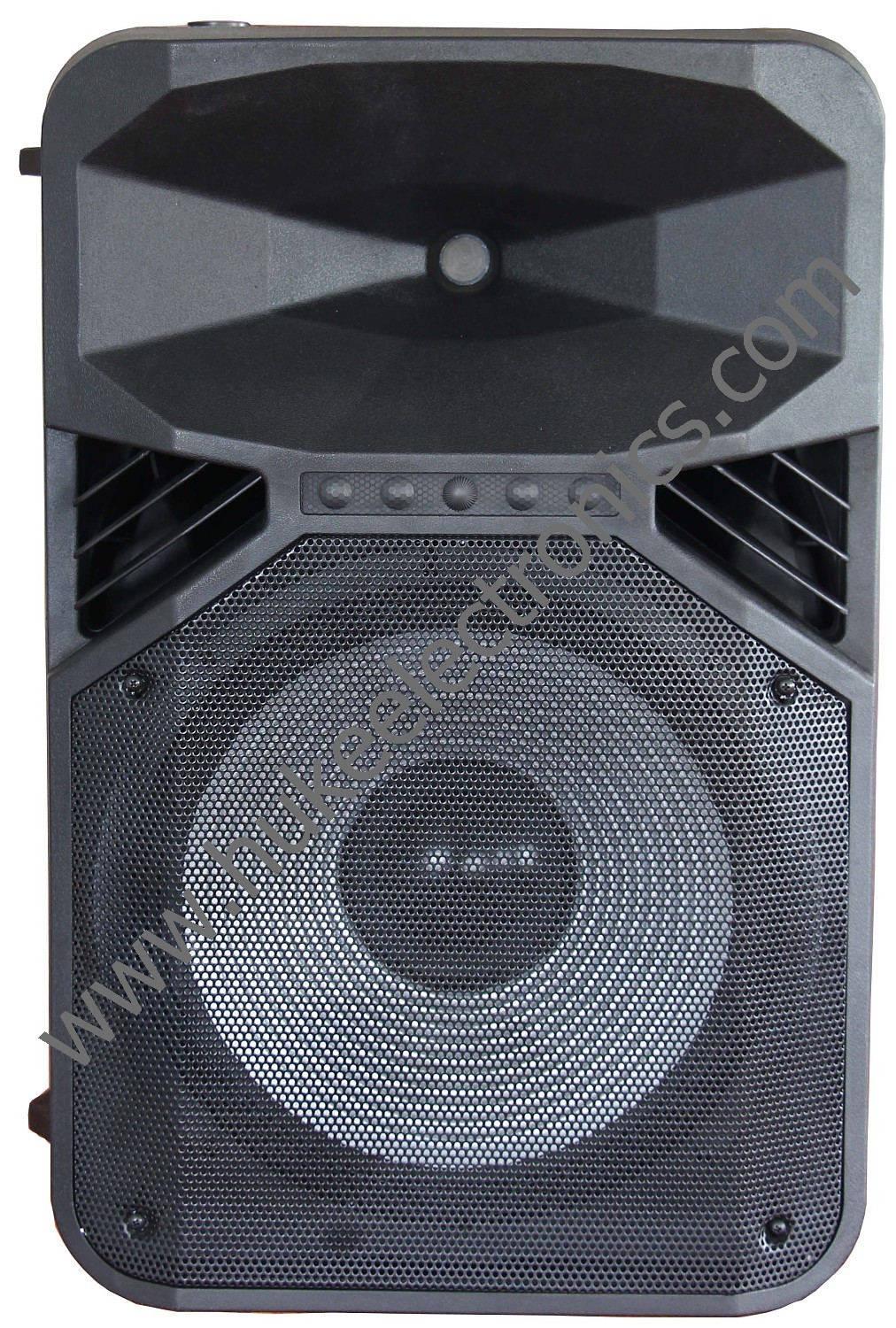

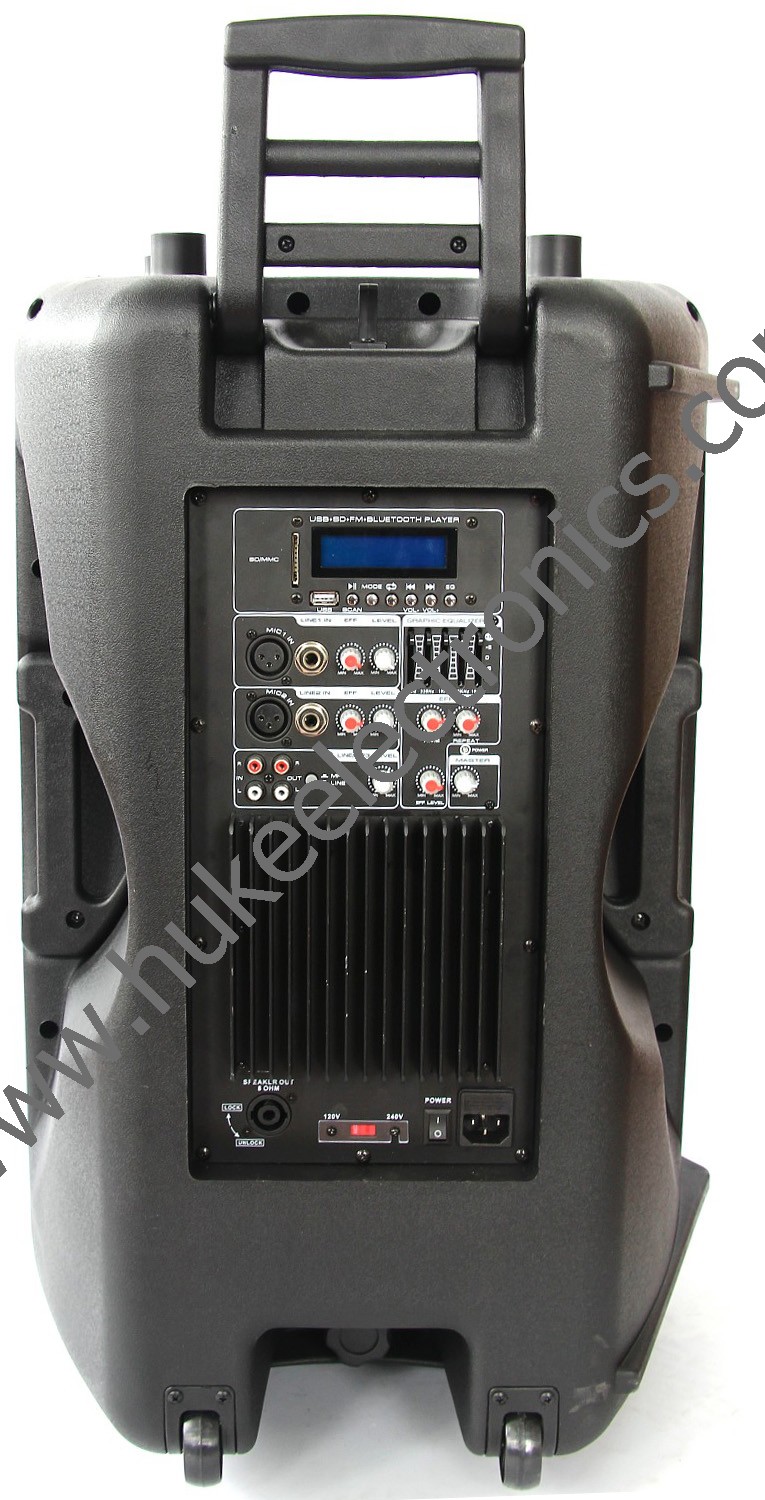

PH Serie
Features :
PH serie is high qualified two-way molded speaker system based on a heavy duty woofer and a titanium compression driver.
Handler at side with speaker mounting pole socket.
Ideal solution for DJ ,clubs and other public speaking applications.
| Model: | PH-15 | PH-15AU | |
| System type: | 15" 2 Way passive | 15" 2 Way active | |
| Power handling: | 250W,500W PEAK | 250W,400W PEAK | |
| LF woofer: | 15" with 3" kapton voice coil, 60 OZ magnet | 15" with 3" kapton voice coil, 60 OZ magnet | |
| HF driver: | 1.75" Titanium | 1.75" Titanium | |
| Frequency response: | 40Hz-18KHz | 40Hz-18KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 98dB | 98dB | |
| Amplifier module: | 250W RMS ,Analog | ||
| Functions: | MP3 player,SD card input,Bluetooth , FM radio,5 band EQ, Time & Effect, remote controller | ||
| Connecors: | 2*Speakon | Dual RCA line & XLR MIC input ,XLR & 1/4 JACK Line output, Speakon output | |
| Dimension(W*L*H): | 50.5*48*75.5 CM | 50.5*48*75.5 CM | |
| Weight: | 21 KGS | 23 KGS | |
