Home>>SPEAKER CABINET>>Moulded Speaker Cabinet

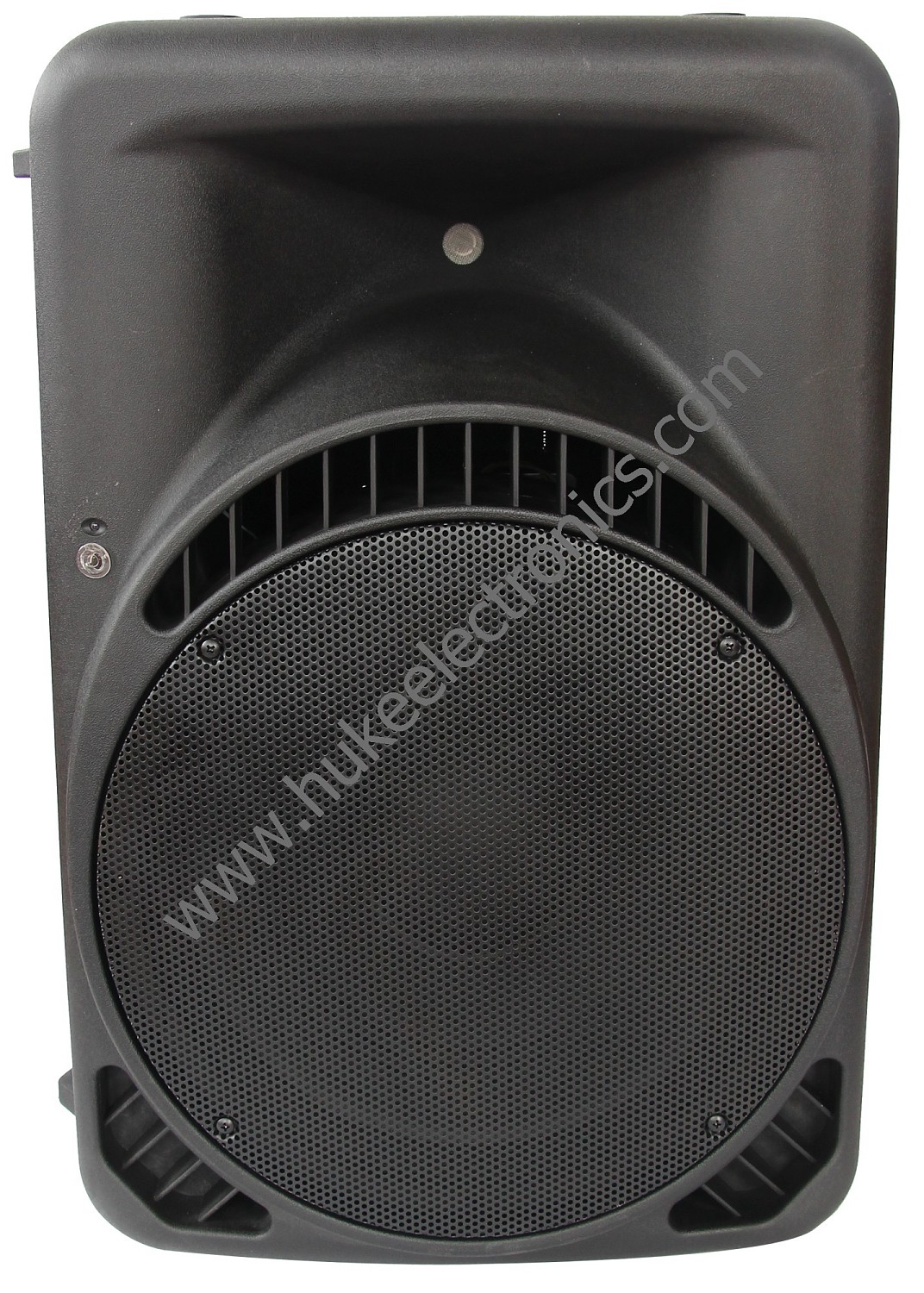

PM Serie
Features :
PM serie is high qualified two-way molded speaker system based on a heavy duty woofer and a titanium compression driver
Handlers at top & side with speaker mounting pole socket and wheels
Ideal solution for DJ ,clubs and other public speaking applications
| Specifications: | |||
| Model: | PM-12 | PM-15 | |
| System type: | 12" 2 Way passive | 15" 2 Way passive | |
| Power handling: | 200W,400W PEAK | 250W ,500W PEAK | |
| LF woofer: | 12" with 2.5" kapton voice coil, 50 OZ magnet | 15" with 3" kapton voice coil , 60 OZ magnet | |
| HF driver: | 1.35" Titanium | 1.75" Titanium | |
| Frequency respons: | 50Hz-18KHz | 40 Hz-18 KHz | |
| Impedance: | 8 Ohm | 8 Ohm | |
| Sensitivity: | 95dB | 98 dB | |
| Connecors: | 2*Speakon | 2* Speakon | |
| Dimension(W*L*H): | 44.5*38*64.5 CM | 50.5*48*75.5 CM | |
| Weight: | 16.5 KGS | 21 KGS |
| Model: | PM-12AUI | PM-15AUI | |
| System type: | 12" 2 Way passive | 15" 2 Way active | |
| Power handling: | 200W,400W PEAK | 250W ,500W PEAK | |
| LF woofer: | 12" with 2.5" kapton voice coil,50 OZ magnet | 15" with 3" kapton voice coil ,60 OZ magnet | |
| HF driver: | 1.35" Titanium | 1.75" Titanium | |
| Frequency respons: | 50Hz-18KHz | 40 Hz-18 KHz | |
| Impedance: | 4 Ohm | 4 Ohm | |
| Sensitivity: | 95dB | 98 dB | |
| Amplifier module: | 200W RMS Digital | 250W RMS Digital AMP | |
| Functions: | MP3 player,SD card input , Ipod dock,5 band EQ, FM radio,remote controller | MP3 player ,SD card input, Ipod dock,5 band EQ , FM radio,remote controller | |
| Connecors: | Dual RCA line & XLR line input,Dual XLR,1/4 Jack MIC input &1/4 Jack MIC input,XLR output | Dual RCA line & XLR line input,Dual XLR,1/4 Jack MIC input &1/4 Jack MIC input, XLR output | |
| Dimension(W*L*H): | 44.5*38*64.5 CM | 50.5*48*75.5 CM | |
| Weight: | 18.5 KGS | 23 KGS | |
