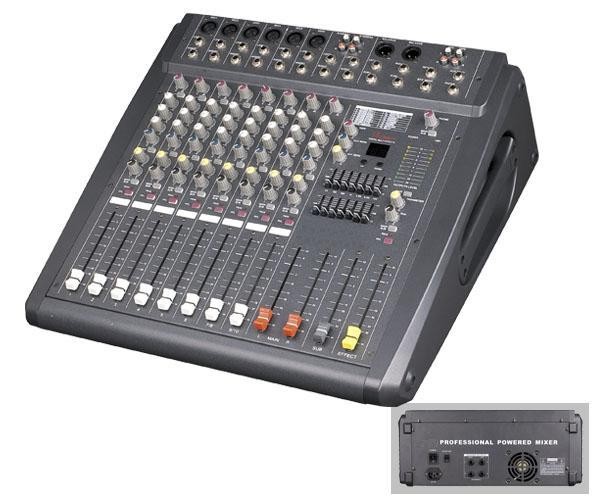

Description:
+48V phantom power
One group AUX output and return
2 digital tubes display and 16 DSP digital effects
Dual 7 bands main control EQ
With 2 SUB output
Recording and headphone listening output
Breakpoint functionality for each channel
|
Model |
PMX-808 |
PMX-1008 |
PMX-1208 |
PMX-1608 |
|
Channel MIC/LINE |
8 CH |
10 CH |
12 CH |
16 CH |
|
Total Harmonic Distortion |
≤0.03% |
≤0.03% |
≤0.03% |
≤0.03% |
|
Frequency Response |
15Hz～22KHz |
15Hz～22KHz |
15Hz～22KHz |
15Hz～22KHz |
|
Max Outputs |
8V Max |
8V Max |
8V Max |
8V Max |
|
S/N Ratio |
≥95dB |
≥95dB |
≥95dB |
≥99dB |
|
Input Sensitivity |
Mic-60dB |
Mic-60dB |
Mic-60dB |
Mic-60dB |
|
Line-40dB |
Line-40dB |
Line-40dB |
Line-40dB | |
|
Input EQ |
HI±15dB/12KHz |
HI±15dB/12KHz |
HI±15dB/12KHz |
HI±15dB/12KHz |
|
MID±15dB/2.5KHz |
MID±15dB/2.5KHz |
MID±15dB/2.5KHz |
MID±15dB/2.5KHz | |
|
LOW±15dB/60Hz |
LOW±15dB/60Hz |
LOW±15dB/60Hz |
LOW±15dB/60Hz | |
|
Output power |
2×350W/4Ω |
2×350W/4Ω |
2×350W/4Ω |
2×350W/4Ω |
