Home>>SPEAKER CABINET>>Moulded Speaker Cabinet

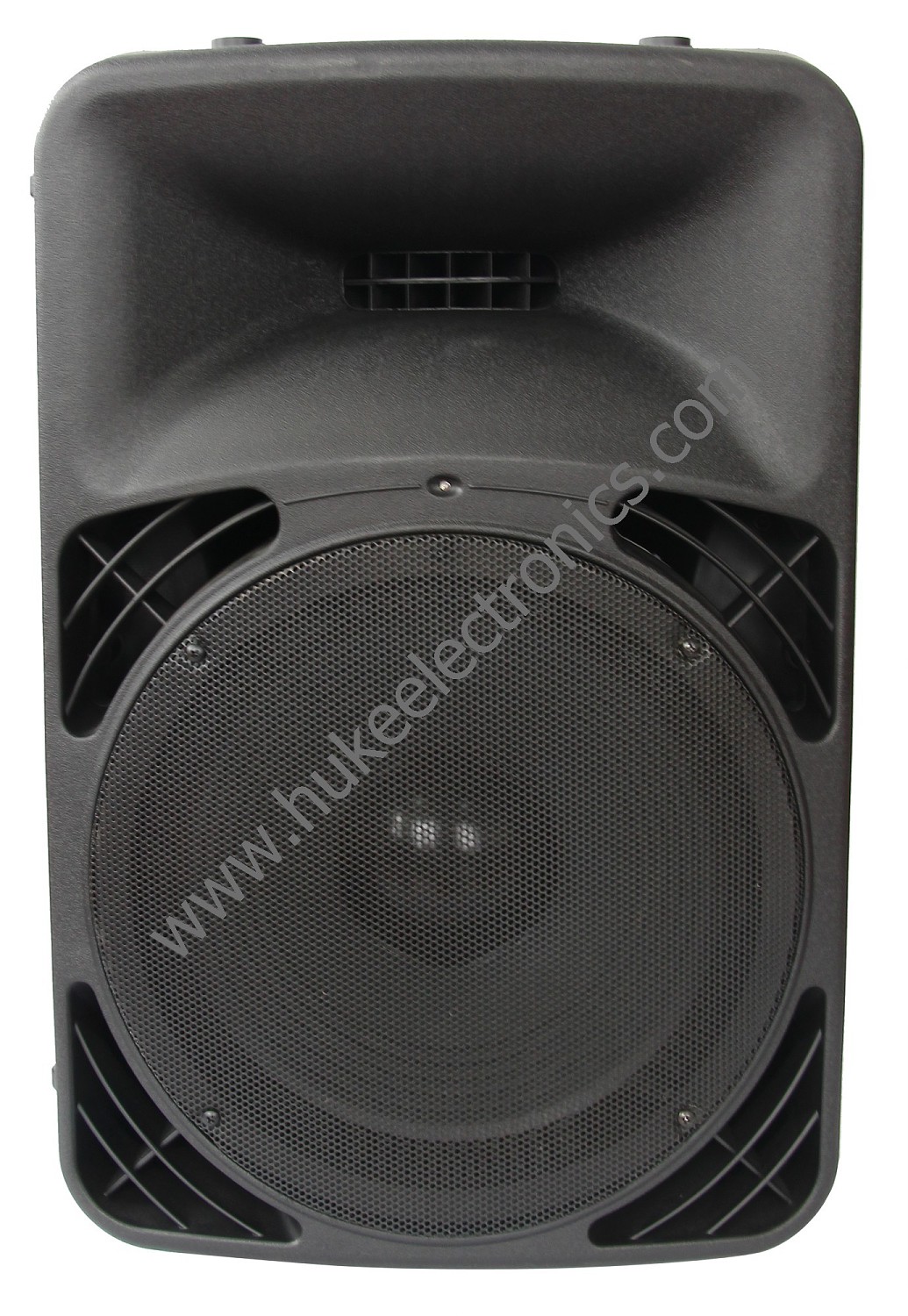

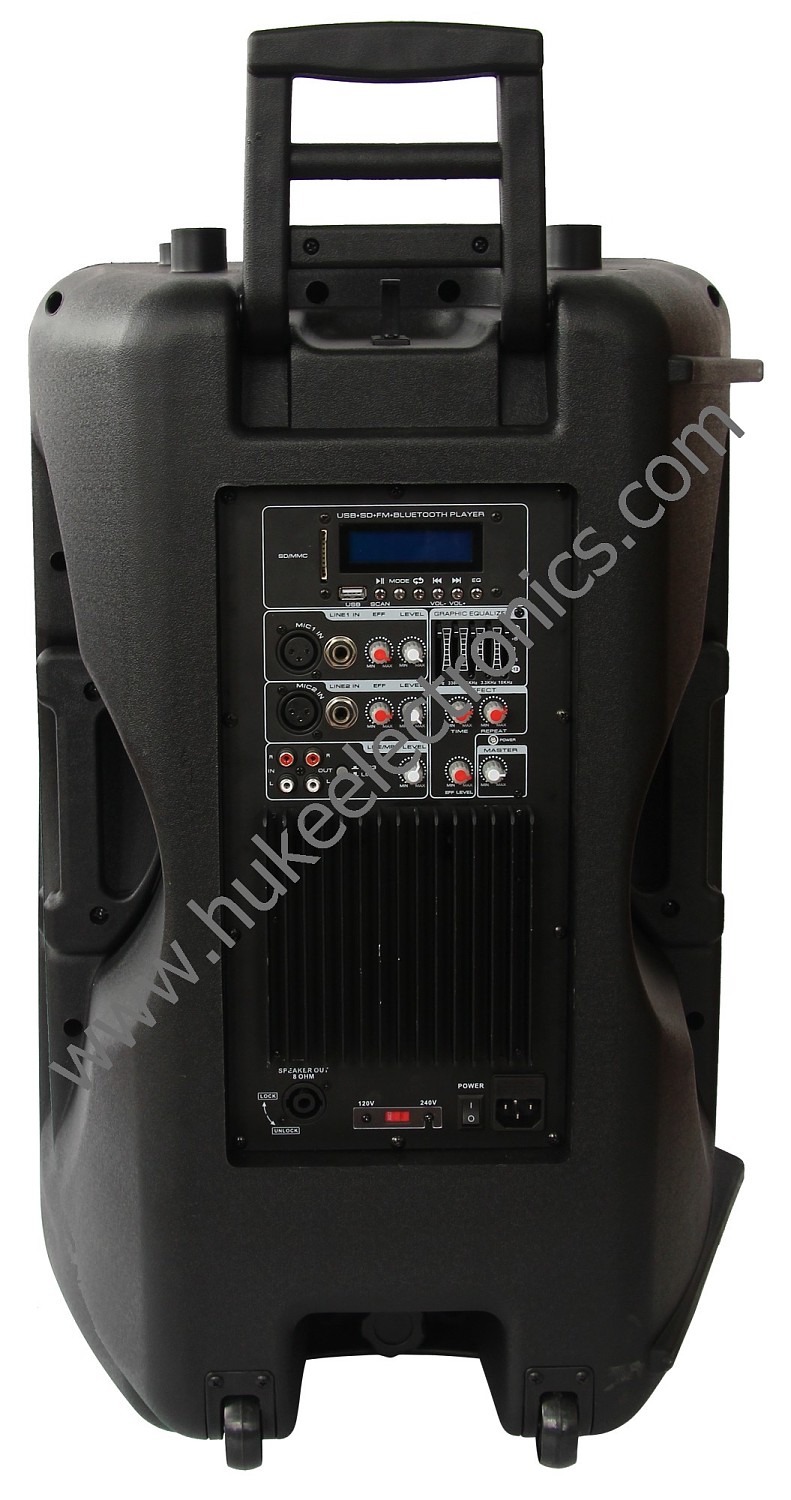

PY Serie
Features :
PY serie is high qualified two-way molded speaker system based on a heavy duty woofer and a titanium compression driver.
Handler at side with speaker mounting pole socket.
Ideal solution for DJ ,clubs and other public speaking applications.
| Specifications: | ||||
| Model: | PY-8 | PY-10 | PY-12 | |
| System type: | 8" 2 Way passive | 10" 2 Way passive | 12" 2 Way passive | |
| Power handling: | 120W,240W PEAK | 150W,300W PEAK | 200W,400W PEAK | |
| LF woofer: | 8" with 1.5" kapton voice coil, 30 OZ magnet | 10" with 2" kapton voice coil, 50 OZ magnet | 12" with 2.5" kapton voice coil, 50 OZ magnet | |
| HF driver: | 1" Titanium | 1.35" Titanium | 1.35" Titanium | |
| Frequency response: | 65Hz-18KHz | 55Hz-18KHz | 50Hz-18KHz | |
| Impedance: | 8 Ohm | 8 Ohm | 8 Ohm | |
| Sensitivity: | 93dB | 95dB | 95dB | |
| Connecors: | 2*Speakon | 2*Speakon | 2*Speakon | |
| Dimension(W*L*H): | 33.5*27*47 CM | 38.5*32.5*55 CM | 44.5*38*64.5 CM | |
| Weight: | 9.5 KGS | 12 KGS | 16.5 KGS | |
| Model: | PY-8AU | PY-10AU | PY-12AU | |
| System type: | 8" 2 Way active | 10" 2 Way active | 12" 2 Way active | |
| Power handling: | 80W,160W PEAK | 120W,240W PEAK | 200W,400W PEAK | |
| LF woofer: | 8" with 1.5" kapton voice coil, 30 OZ magnet | 10" with 2" kapton voice coil, 50 OZ magnet | 12" with 2.5" kapton voice coil, 50 OZ magnet | |
| HF driver: | 1" Titanium | 1.35" Titanium | 1.35" Titanium | |
| Frequency response: | 65Hz-18KHz | 55Hz-18KHz | 50Hz-18KHz | |
| Impedance: | 4 Ohm | 4 Ohm | 4 Ohm | |
| Sensitivity: | 93dB | 95dB | 95dB | |
| Amplifier module: | 90W RMS ,Analog | 150W RMS ,Analog | 200W RMS ,Analog | |
| Functions: | MP3 player,SD card input,Bluetooth , FM radio, remote controller | MP3 player,SD card input,Bluetooth , FM radio, remote controller | MP3 player,SD card input,Bluetooth , FM radio,5 band EQ, Time & Effect, remote controller | |
| Connecors: | Dual RCA line & 1/4 JACK MIC INPUT & Speakon output | Dual RCA line & XLR MIC input ,XLR & 1/4 JACK Line output, Speakon output | Dual RCA line & XLR MIC input ,XLR & 1/4 JACK Line output, Speakon output | |
| Dimension(W*L*H): | 33.5*27*47 CM | 38.5*32.5*55 CM | 44.5*38*64.5 CM | |
| Weight: | 10.5 KGS | 13.5 KGS | 18.5 KGS | |
| Model: | PY-15 | PY-15AU | |
| System type: | 15" 2 Way passive | 15" 2 Way active | |
| Power handling: | 250W,500W PEAK | 250W,400W PEAK | |
| LF woofer: | 15" with 3" kapton voice coil, 60 OZ magnet | 15" with 3" kapton voice coil, 60 OZ magnet | |
| HF driver: | 1.75" Titanium | 1.75" Titanium | |
| Frequency response: | 40Hz-18KHz | 40Hz-18KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 98dB | 98dB | |
| Amplifier module: | 250W RMS ,Analog | ||
| Functions: | MP3 player,SD card input,Bluetooth , FM radio,5 band EQ, Time & Effect, remote controller | ||
| Connecors: | 2*Speakon | Dual RCA line & XLR MIC input ,XLR & 1/4 JACK Line output, Speakon output | |
| Dimension(W*L*H): | 50.5*48*75.5 CM | 50.5*48*75.5 CM | |
| Weight: | 21 KGS | 23 KGS | |
