Home>>SPEAKER CABINET>>Wooden Speaker Cabinet

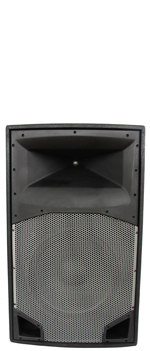

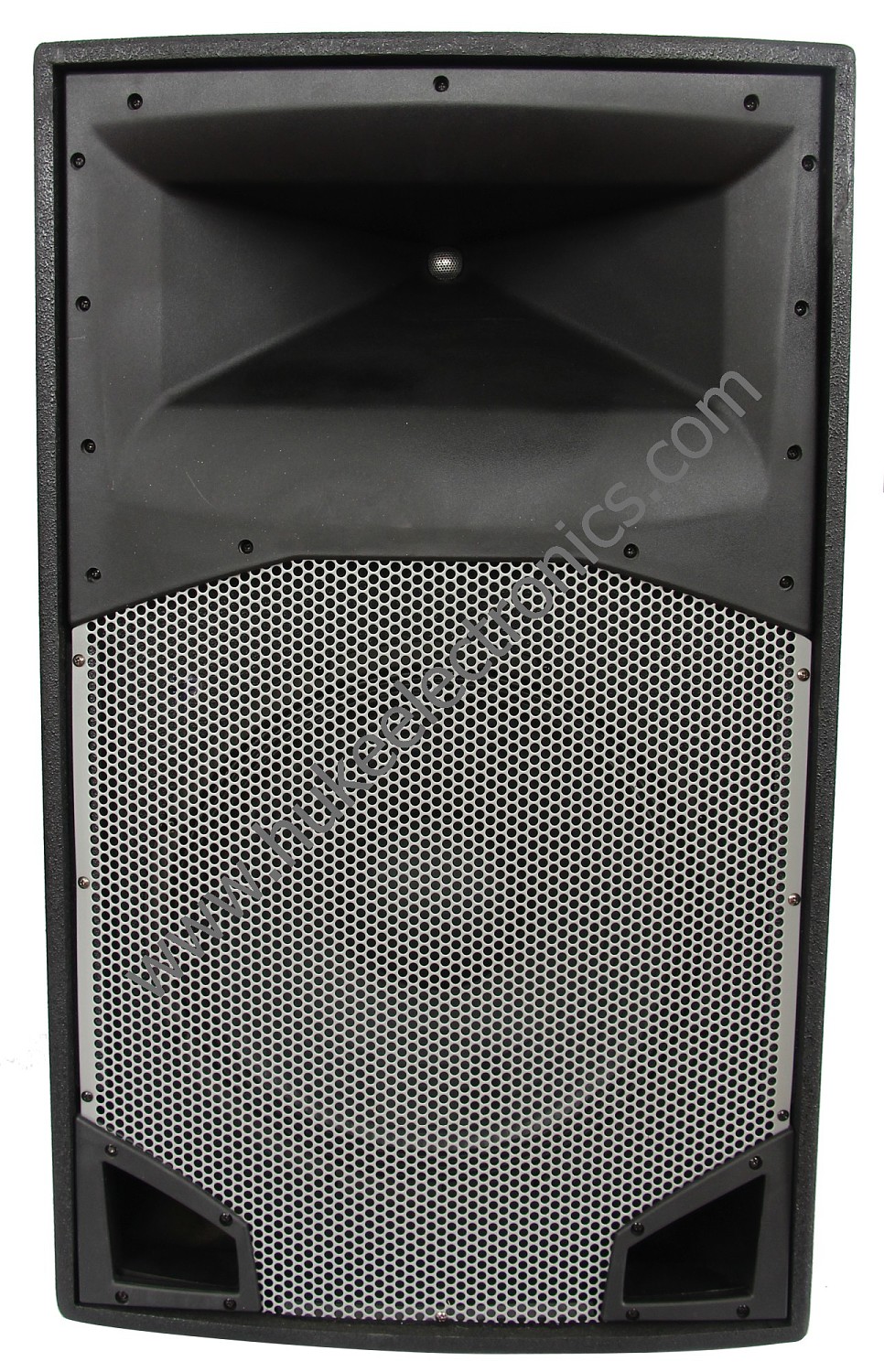

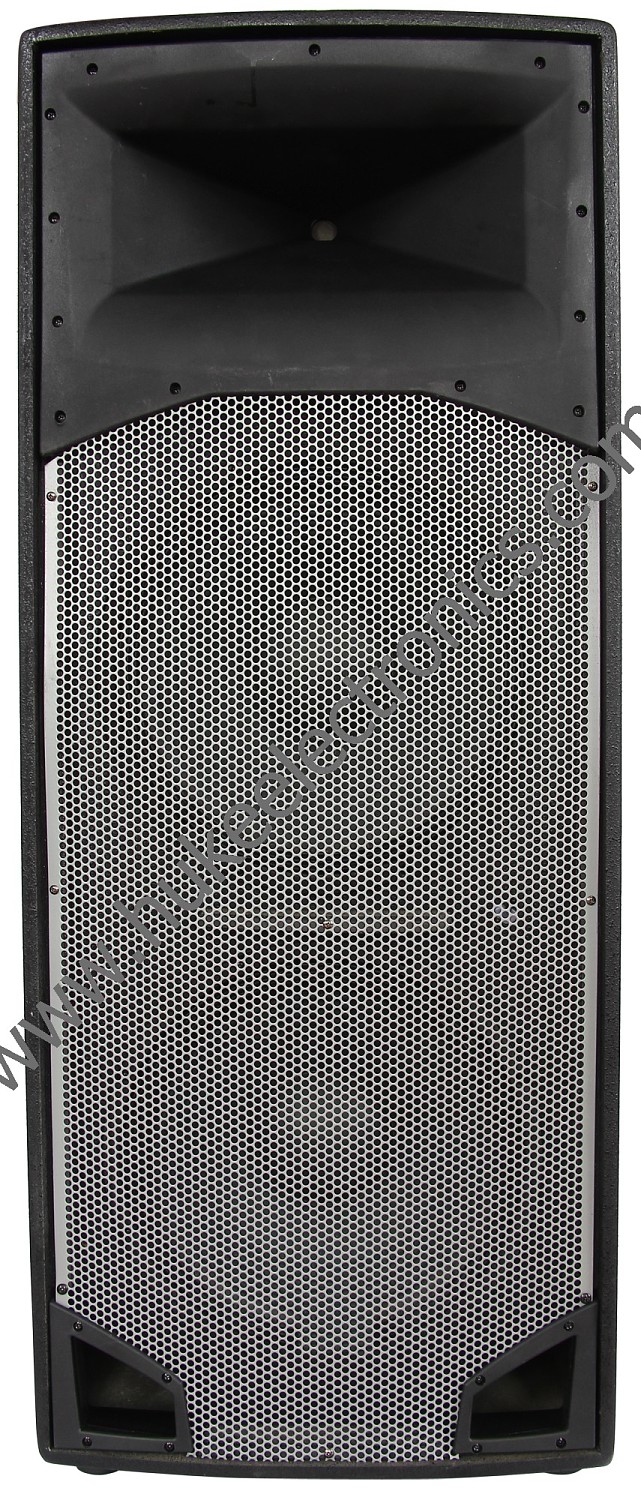

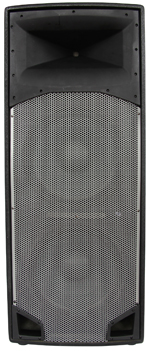

WV Serie
Features :
WV serie is two-way speaker system based on a heavy duty woofer and a titanium compression driver mounted on a constant-directivity horn.
MDF wood with paing finish trapezoidal enclosure with stand-mount cup facilitates portable use for excellent live music or speech sound reinforcement, as well as music playback.
Silver powder-coated steel grille provides driver protection
| Specifications: | |||
| Model: | WV-15 | WV-215 | |
| System type: | 15"2 Way | Dual 15"2 Way | |
| Power handling: | 300W ,600W PEAK | 600W ,1200W PEAK | |
| LF woofer: | 15"with 3" voice coil | 2*15"with 3" voice coil | |
| HF driver: | 1.75" Titanium | 1.75" Titanium | |
| Frequency response: | 45-20 KHz | 40-20 KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 98dB | 100dB | |
| Connectors: | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack | |
| Dimension(W*L*H): | 53*58*89 CM | 53*58*130 CM | |
| Weight: | 34 KGS | 60 KGS |
| Model: | WV-18S | WV-218S | |
| System type: | 18" Subwoofer | Dual 18" Subwoofer | |
| Power handling: | 500W ,1000W PEAK | 500W ,1000W PEAK | |
| LF woofer: | 18" with 4" voice coil | 2*18" with 4" voice coil | |
| Frequency response: | 38-600 Hz | 38-600 Hz | |
| Impedance: | 8 Ohm | 8 Ohm | |
| Sensitivity: | 100dB | 103dB | |
| Connectors: | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack | |
| Dimension(W*L*H): | 66*58*68 CM | 66*120*73 CM | |
| Weight: | 45 KGS | 76 KGS |
